PIG-08-02 · Manure & Odour
V-Shaped Manure Pits & Urine Separation
V-shaped channels and scrapers that let urine drain away while solids are scraped out.
- V-shaped channels
- Scraper blades
- Urine drain
- Used in
- Whole farm
- Works with
- Automatic Manure Scrapers, Manure Solid-Liquid Separators, Composting & Organic Fertiliser Equipment
- Made to
- Your house, herd size and layout
- Order as
- Single items, complete rooms or part of a turnkey farm
About v-shaped manure pits & urine separation
In a V-shaped channel, urine runs to a central drain while the scraper removes the solids. Separating them in the house cuts ammonia and makes treatment easier. The result depends on the concrete slope and finish, the installation and daily running.
Common configurations

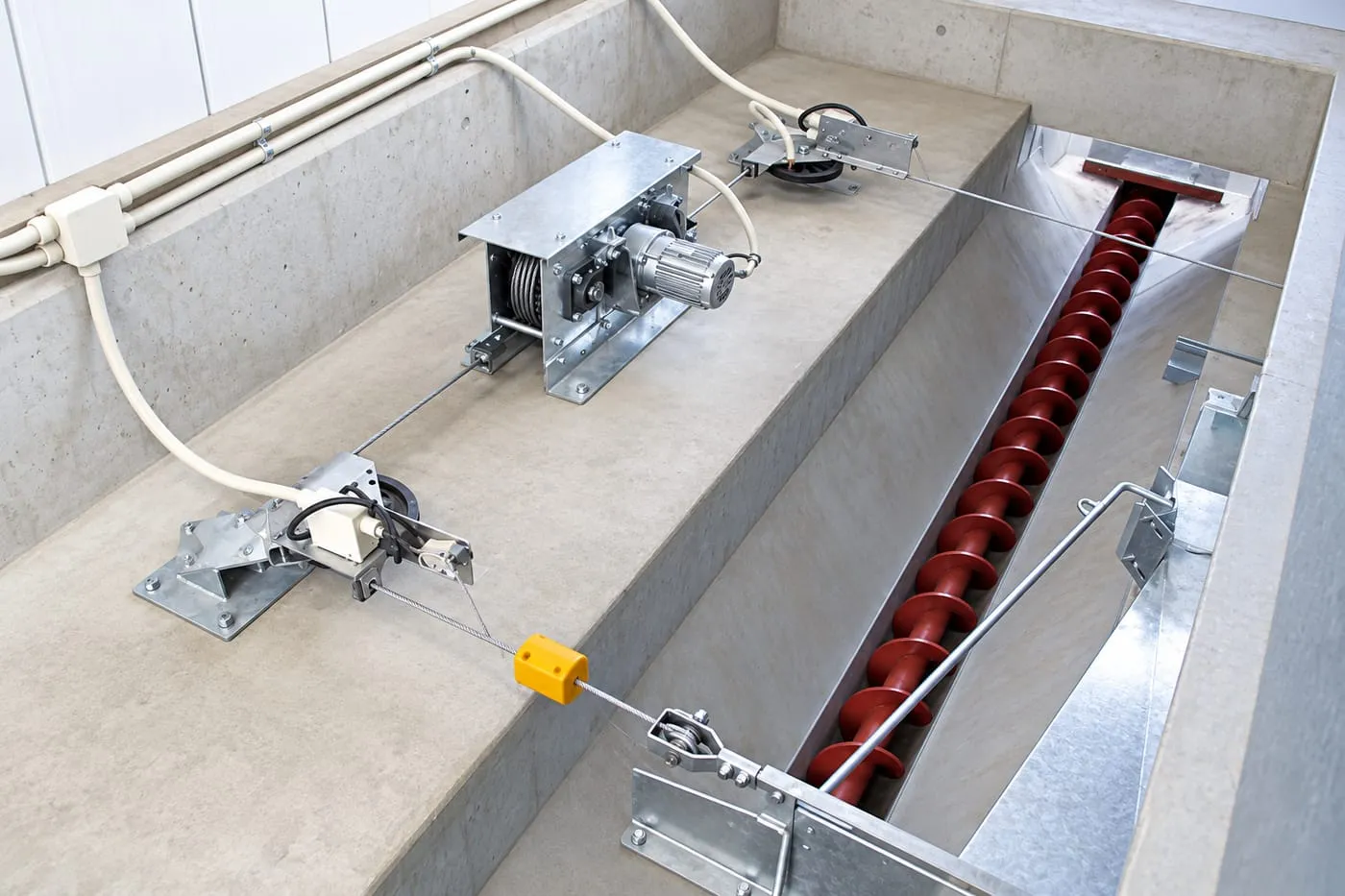

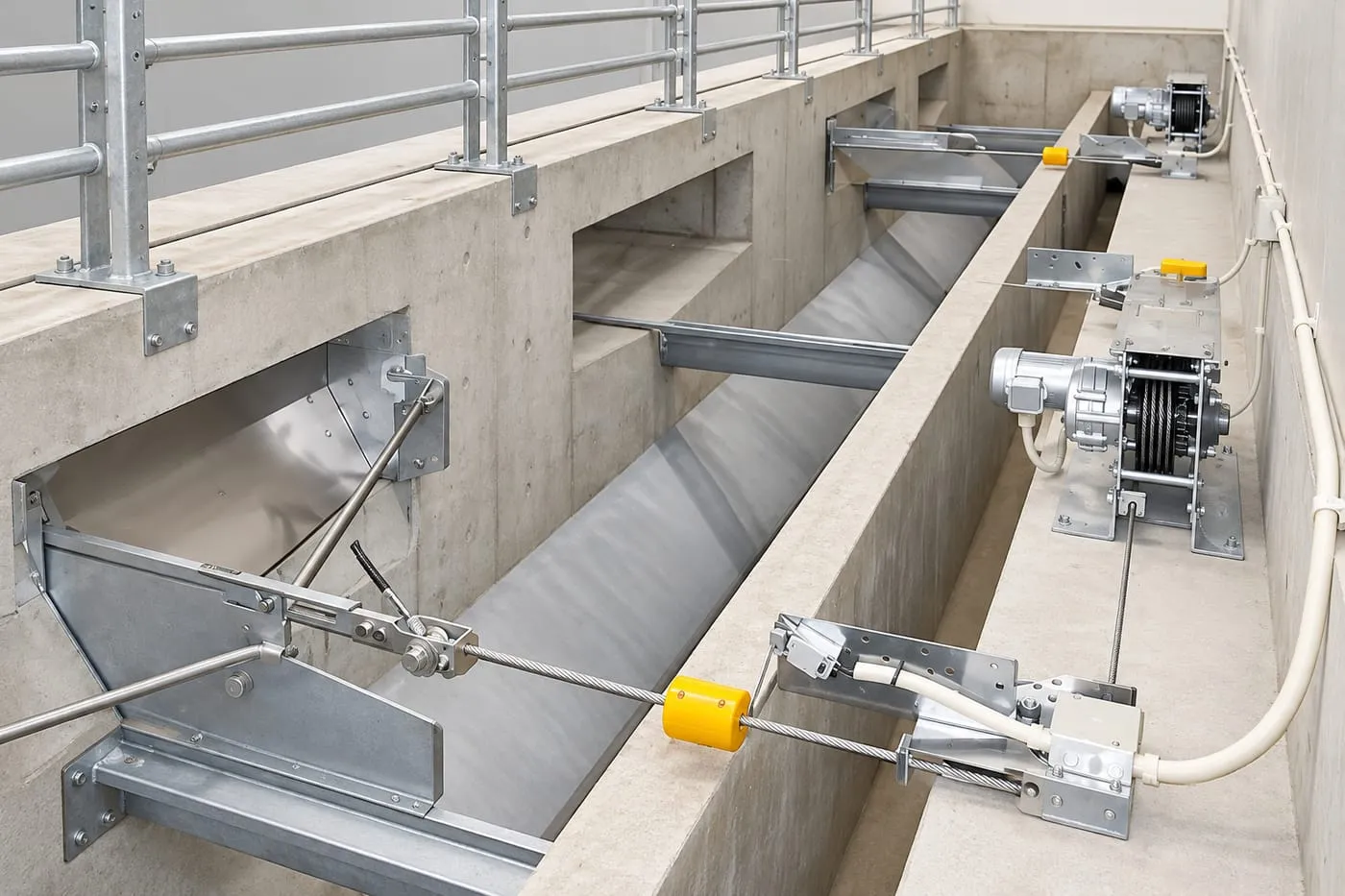

V-shaped channels
Sloped sides to a central drain.
Blades and urine drain
Different blade and drain designs.
Selection checklist
Before we send a layout or quotation, we confirm these points with you.
| Point to confirm | Why we ask |
|---|---|
| Channel shape and concrete | Slope and surface finish. |
| Urine and solids outlets | Where each goes. |
| Drive and limits | Scraper movement. |
| Cleaning and service | Access to channel and drain. |
| Corrosion | Materials in contact with urine. |
| Downstream link | Connection to storage or treatment. |
Dimensions, materials and quantities are confirmed for each project.
Scope of supply
| Usually in the package | Agreed in each contract |
|---|---|
| In-house scrapers and their drives | Civil works for pits, channels and lagoons |
| Collection, pumping and storage equipment | Final use or discharge of the end products |
| Treatment equipment for the chosen route | Testing, permits and long-term operation |
Fits with
Tell us about your farm
Share the herd size, the stages you want to equip and where the farm is — our engineers will suggest a configuration.
