PIG-05-03 · Feed Storage & Feeding
Chain-Disc Feeding Systems
Discs on a chain pull feed around a closed loop, through corners and past every outlet in the house.
- Closed loops
- Corners and zones
- Volumetric dosing
- Used in
- Whole farm
- Works with
- Feed Silos & Bins, Sow Feed Dosers, Auger Feeding Systems
- Made to
- Your house, herd size and layout
- Order as
- Single items, complete rooms or part of a turnkey farm
About chain-disc feeding systems

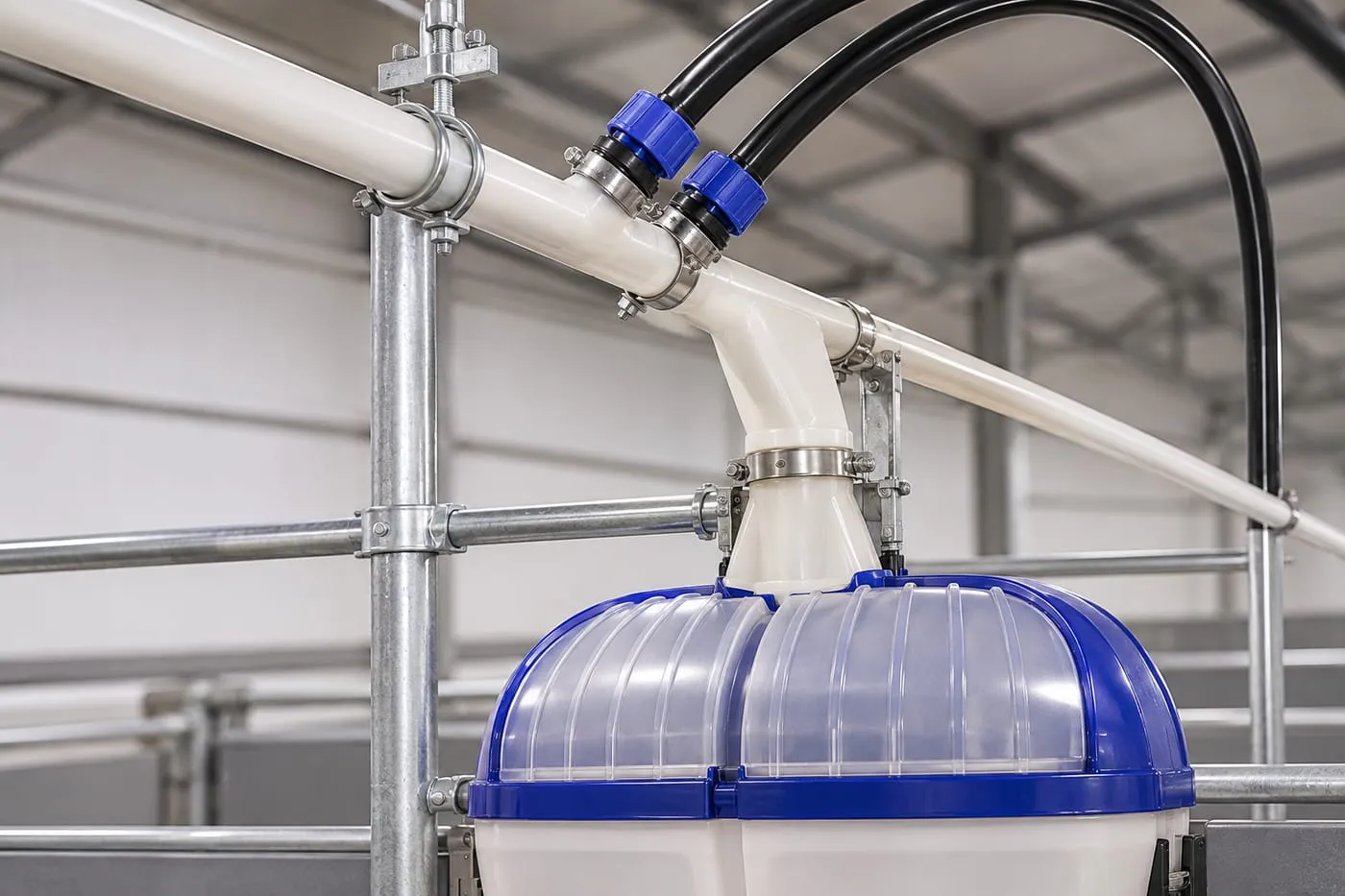

In a chain-disc system, discs fixed to a chain drag feed through a closed pipe loop. Corners let one loop serve several rows or rooms, and outlets feed troughs or dosers along the way. Loop length, corners, drive tension and protection against blockages are planned for each house.
Common configurations
Pipe sizes and corners
For different capacities and layouts.
Zoned loops
Separate circuits for rooms or stages.

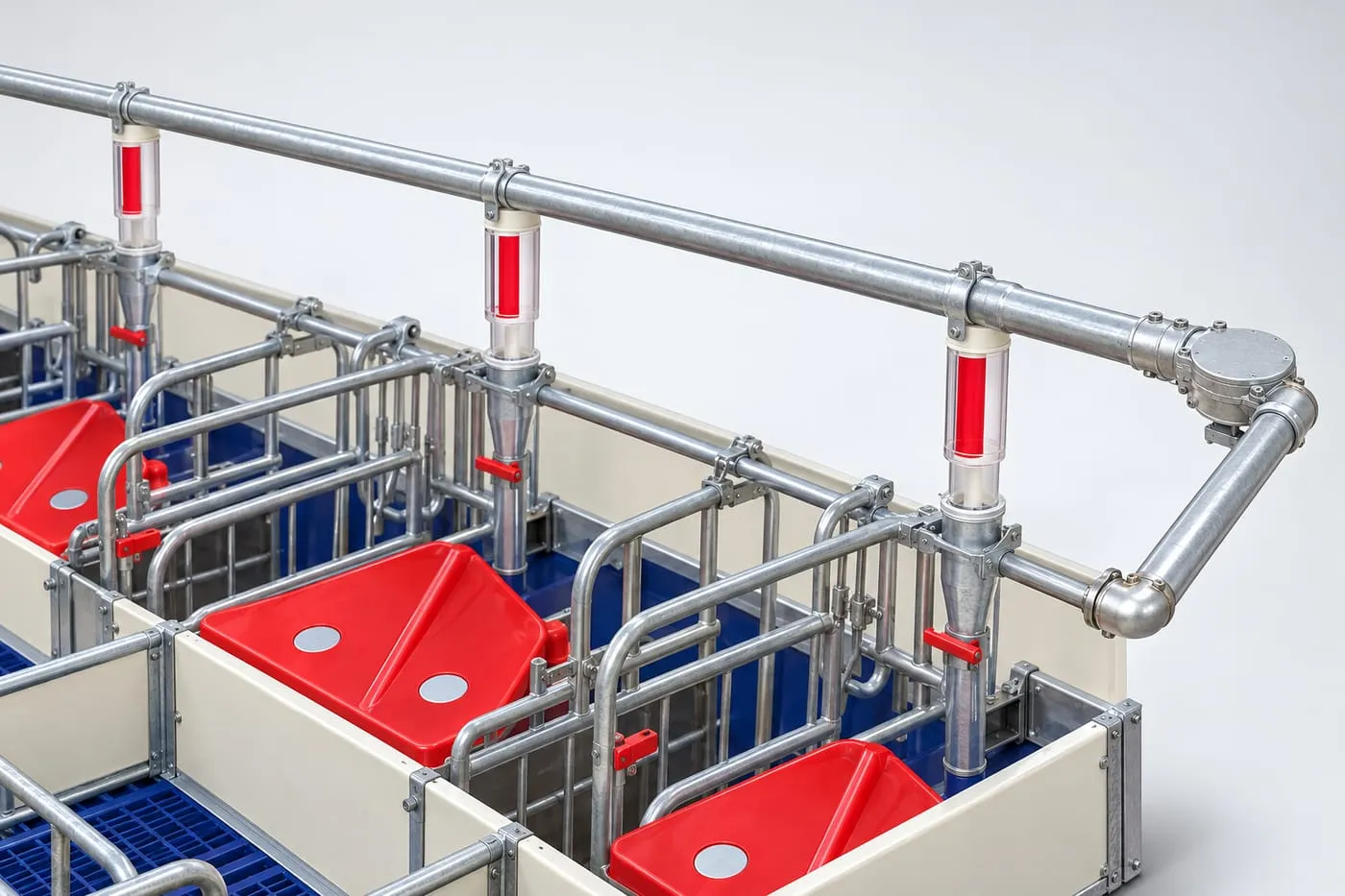

With dosers
Volumetric drops for sows.
Selection checklist
Before we send a layout or quotation, we confirm these points with you.
| Point to confirm | Why we ask |
|---|---|
| Loop length and corners | Sets drive size and layout. |
| Feed form | Pellets or mash. |
| Drive and tension | Position and tensioning unit. |
| Outlets and zones | Where feed drops, and when. |
| Blockage protection | Sensors and safety switches. |
| Level and control interface | Links to the feed controller. |
Dimensions, materials and quantities are confirmed for each project.
Scope of supply
| Usually in the package | Agreed in each contract |
|---|---|
| Silos, feed lines, drives and corners | Feed delivery to the silo and silo foundations |
| Dosers, drop tubes and troughs or feeders | Power supply and wiring on site |
| Line controls where ordered | Cleaning and feed-formula management |
Fits with
Tell us about your farm
Share the herd size, the stages you want to equip and where the farm is — our engineers will suggest a configuration.
