PIG-01-05 · Planning & Pig Houses
Loading Ramps & Pig Handling Alleys
Alleys, gates and ramps that move pigs between houses and onto trucks without slipping or crossing zones.
- Fixed or mobile ramps
- Guide gates
- Transfer alleys
- Used in
- Moving and loading pigs
- Works with
- Pig Sorting Boards & Handling Tools, Automatic Pig Sorting Stations, Vehicle Wash, Disinfection & Drying
- Made to
- Your house, herd size and layout
- Order as
- Single items, complete rooms or part of a turnkey farm
About loading ramps & pig handling alleys
Moving pigs is where staff and animals are most at risk, and where the clean and dirty sides of a farm meet. Alleys, gates and ramps need non-slip floors, a gentle slope, solid sides and a clear boundary at the truck. We plan them with the house layout and the vehicles that will collect your pigs.
Common configurations

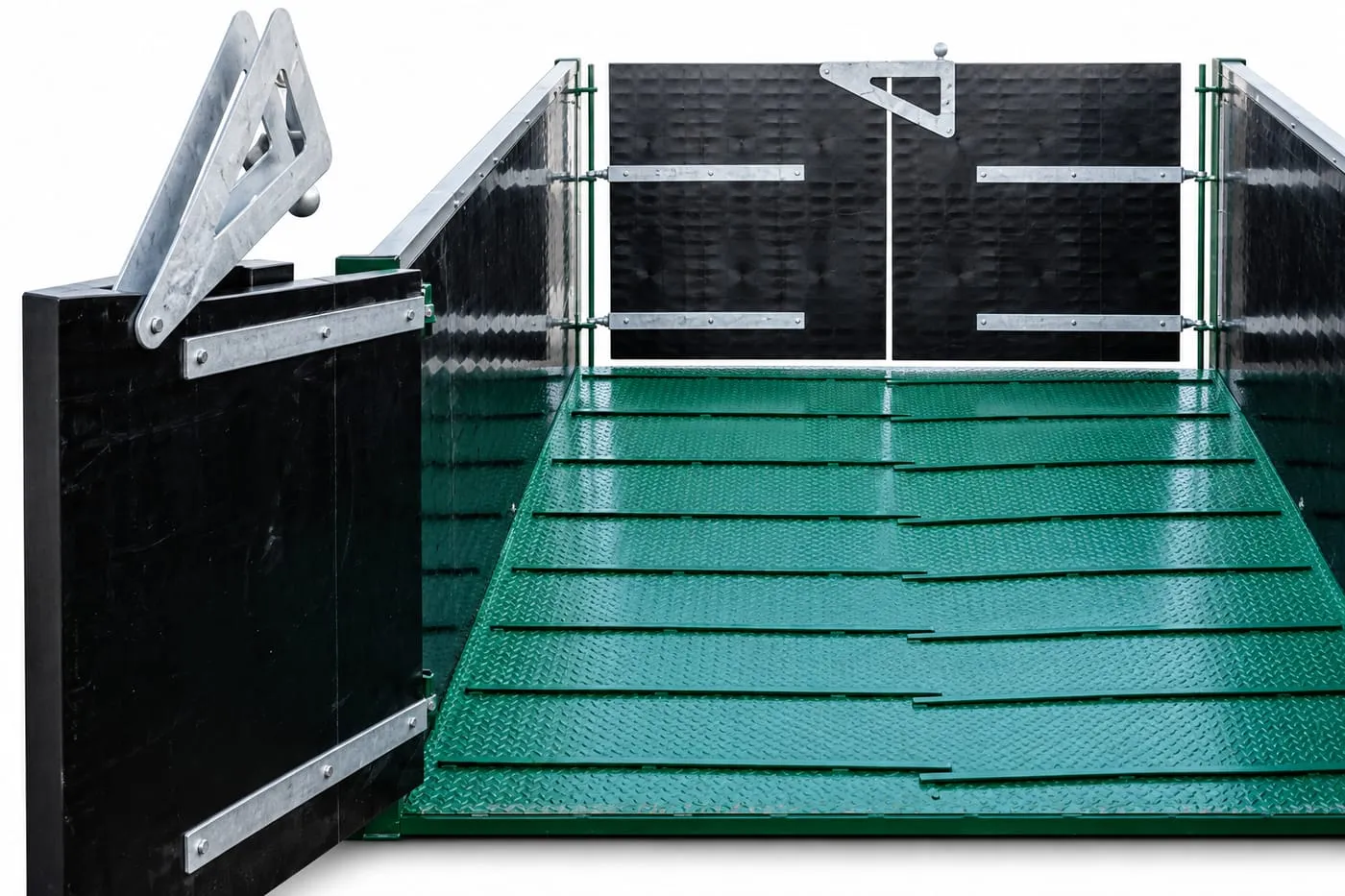

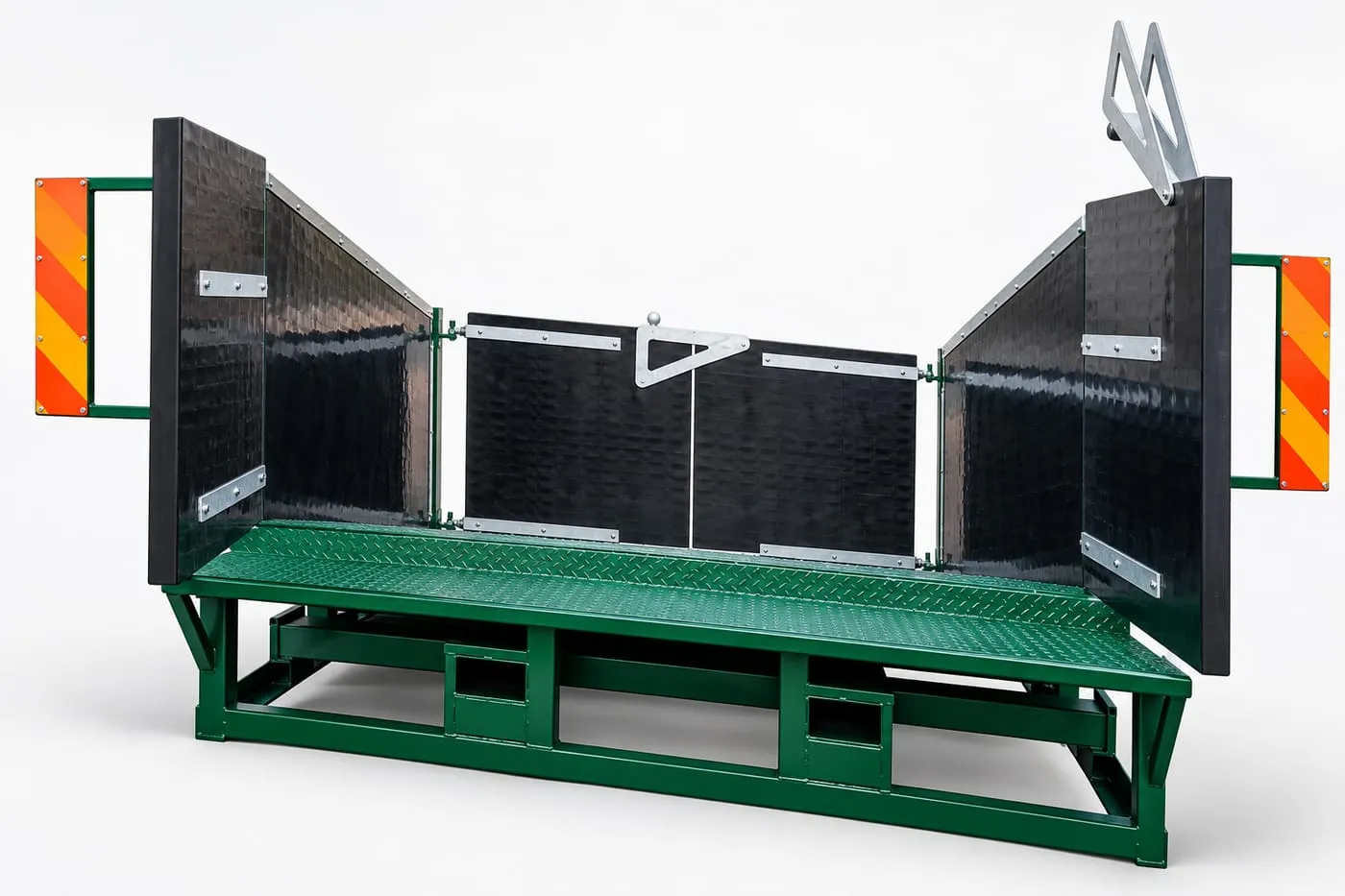

Fixed or mobile ramps
Built-in loading bays or movable ramps.
Guide gates
Swing and sliding gates to steer groups.
Transfer alleys
Corridors linking houses and stages.
Selection checklist
Before we send a layout or quotation, we confirm these points with you.
| Point to confirm | Why we ask |
|---|---|
| Pig size | Sets alley width and side height. |
| Width, slope and floor | Non-slip surface at a comfortable angle. |
| Truck interface | Height and position of the loading door. |
| Cleaning at the boundary | The loading point separates clean and dirty zones. |
| Gate locks and side protection | Safety for staff and pigs. |
| Moving and fixing | How mobile parts are stored and secured. |
Dimensions, materials and quantities are confirmed for each project.
Scope of supply
| Usually in the package | Agreed in each contract |
|---|---|
| Site layout, production flow and house layout | Site survey, soil investigation and detailed local design |
| Equipment plan for each house | Permits and approvals |
| Steel structure, roof and wall envelope, doors and windows | Foundations, civil works and on-site lifting |
Fits with
Tell us about your farm
Share the herd size, the stages you want to equip and where the farm is — our engineers will suggest a configuration.
